MSG? 8/9 Centrifugal Air & Gas Compressor

< >
MSG? 8/9 Centrifugal Air & Gas Compressor

MSG compressors are custom designed and built for individual customer needs for a variety of applications. Our MSG style compressors are manufactured with a highly engineered air flow components, designed for easy, low-cost installation and operation.

Features

MSG? INTEGRALLY GEARED CENTRIFUGAL COMPRESSORS

MSG (multi-stage geared) compressors offer outstanding design flexibility. MSG compressors are application engineered with numerous available configurations:

  • Flows from 70 to 3800 m3/min (2500 to 135,000 CFM)

  • Input capacity to over 18,650 kW (25,000 hp)

  • Discharge pressures to 100 barg (1450 psig)

FEATURES

Oil-Free Air and Gas
  • Prevents system contamination

  • Reduces the potential for compressed air pipeline fires caused by oil carryover

  • No costly waste disposal associated with oil-laden condensate

  • Eliminates the expense and maintenance of oil separation filters at the discharge

High Reliability

MSG centrifugal compressors are designed to be extremely
reliable due to:

  • Conservative high-quality gear design

  • Long-life pinion bearing design

  • Thrust loads absorbed at low speed

  • Stainless steel compression elements

Low Compressor Operating Life Cycle Cost

MSG centrifugal compressors provide better overall operating efficiency than positive displacement or other centrifugal compressors.

  • Excellent efficiencies at full load, part load and no load

  • Low maintenance cost

  • Increased uptime from high-reliability design (limits the need for multiple unit installations for basic reliability reasons)

  • No sliding or rubbing parts in the compression process that can cause wear and thereby efficiency loss

 APPLICATIONS

Engineered Air Applications

  • Industrial gases

  • Instrument air

  • American Petroleum Institute (API) standards

  • Soot blowers

  • Large plant air

  • Power industry related

Gas Compressor Applications

  • Fuel gas boosting

  • Natural gas gathering

  • Hydrocarbon refrigeration gas

  • Carbon monoxide

  • CO2 (wet or dry)

  • SynGas

  • Low molecular weight recycle gas

  • High-pressure nitrogen

  • Landfill gas

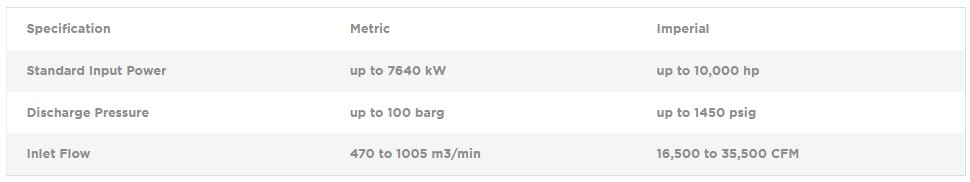

Model specifications
